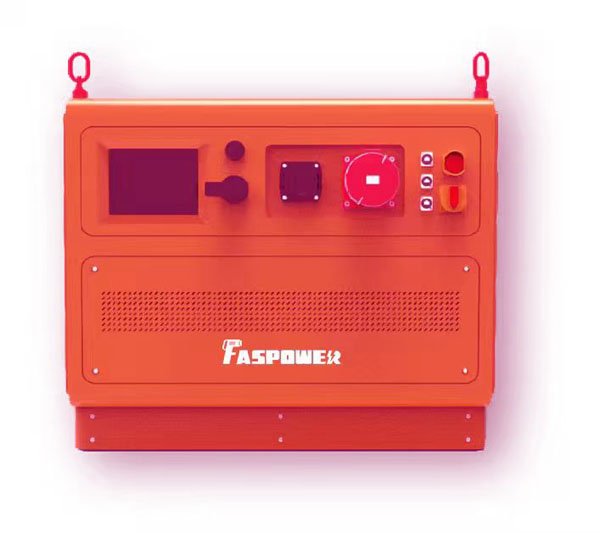

Vehicle-mounted Power-preserving Energy Storage
Core Advantages
- Flexible and Portable: Weighing only 450KG, it can be loaded/unloaded on pickup trucks by forklift, ideal for mobile power scenarios.
- Multi-scenario Power Compatibility: Supports 380V three-phase and 220V single-phase output, 100% three-phase unbalanced operation, and off-grid independent power supply.
- Intelligent Charging System: Compatible with EV charging ecosystem, supports fast/slow charging piles and OBC DC slow charging, with DC fast charging fully charged in as fast as 2 hours.
- Flexible Expansion Capacity: Up to 3 units can be paralleled for a total 150KW power, meeting high-power load demands.

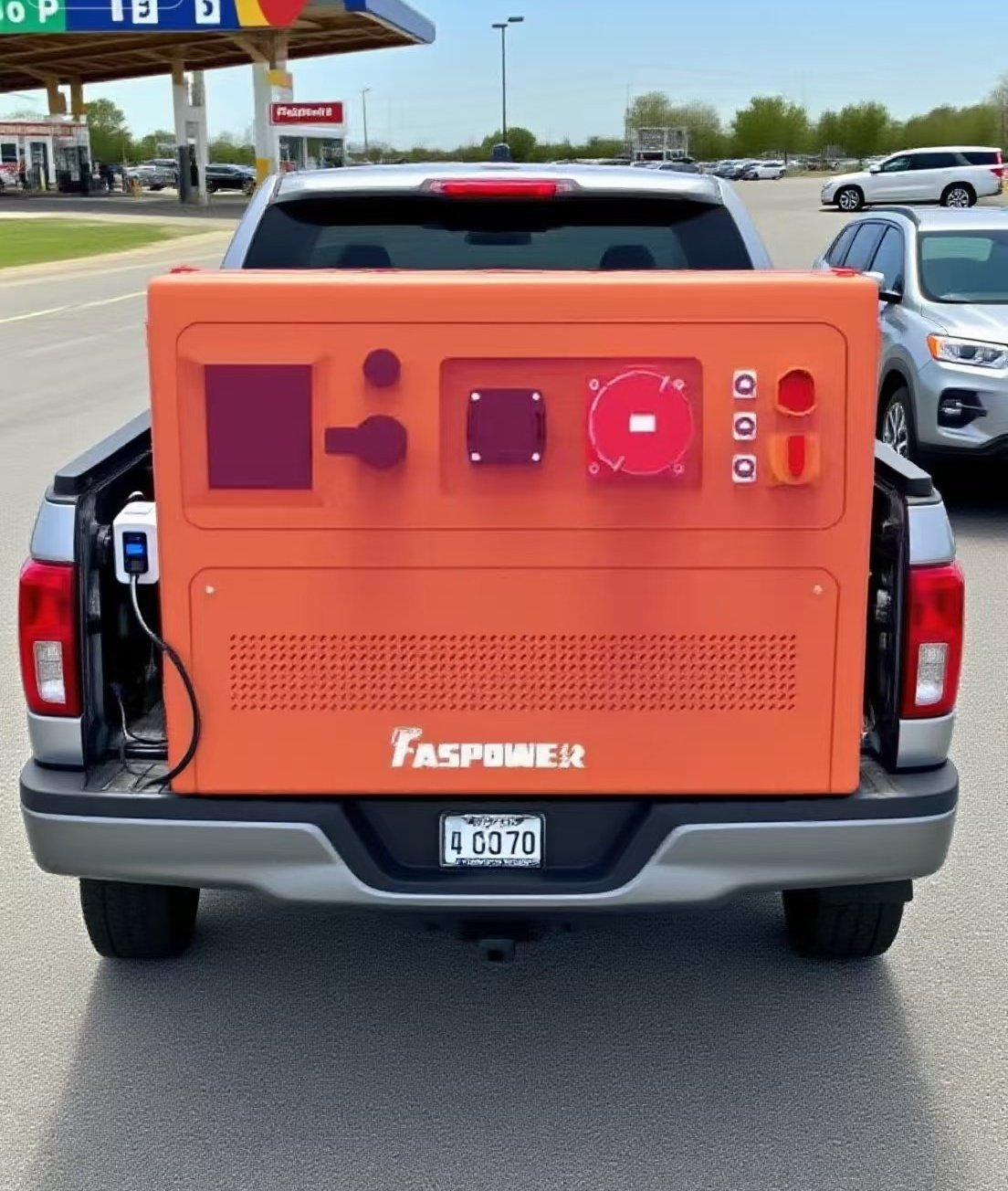

- Special Scenario Linkage: Integrates with electric pickups to form a “mobile power supply + transportation tool” solution, improving outdoor operation energy efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Grid Type | 3L + N + P E |
| Rated Power | 30kW |
| Rated Voltage | 400V |
| Grid Voltage Range | 400V + 20% |
| Rated Current | 43A |
| Maximum Conversion Efficiency | 96% |
| Overload Capability | 110% continuous |
| Rated Frequency | 50Hz |
| Grid Frequency Range | 45Hz – 55Hz |
| Grid THD (Total Harmonic Distortion) | ≤3% at Full Load |
| Three-Phase Imbalance | 100% |
| Power Factor | 1 |
| Battery Type | Lithium iron phosphate |
| Rated Energy | 50kWh |
| Rate | ≤1C |
| Working Environment Temp | -20℃ – 50℃ |
| Noise | ≤60dB |
| Protection level | IP54 (Outdoor) |
| Charging duration | 1.5 – 2 hours |
| Dimensions | 940*1000*928.5(mm) |
| Weight | ≤650KG |
Ideal Applications
- Power supply guarantee for Class I and II loads
- Outdoor temporary power supply
- Low-voltage live-line maintenance
- Rescue service vehicles
- Mobile power support for construction sites and field operations
This vehicle-mounted power-preserving energy storage system delivers reliable, flexible mobile power solutions, combining high efficiency, portability, and intelligent control to meet diverse power demands in outdoor and mobile scenarios.
